System Architecture

Overview

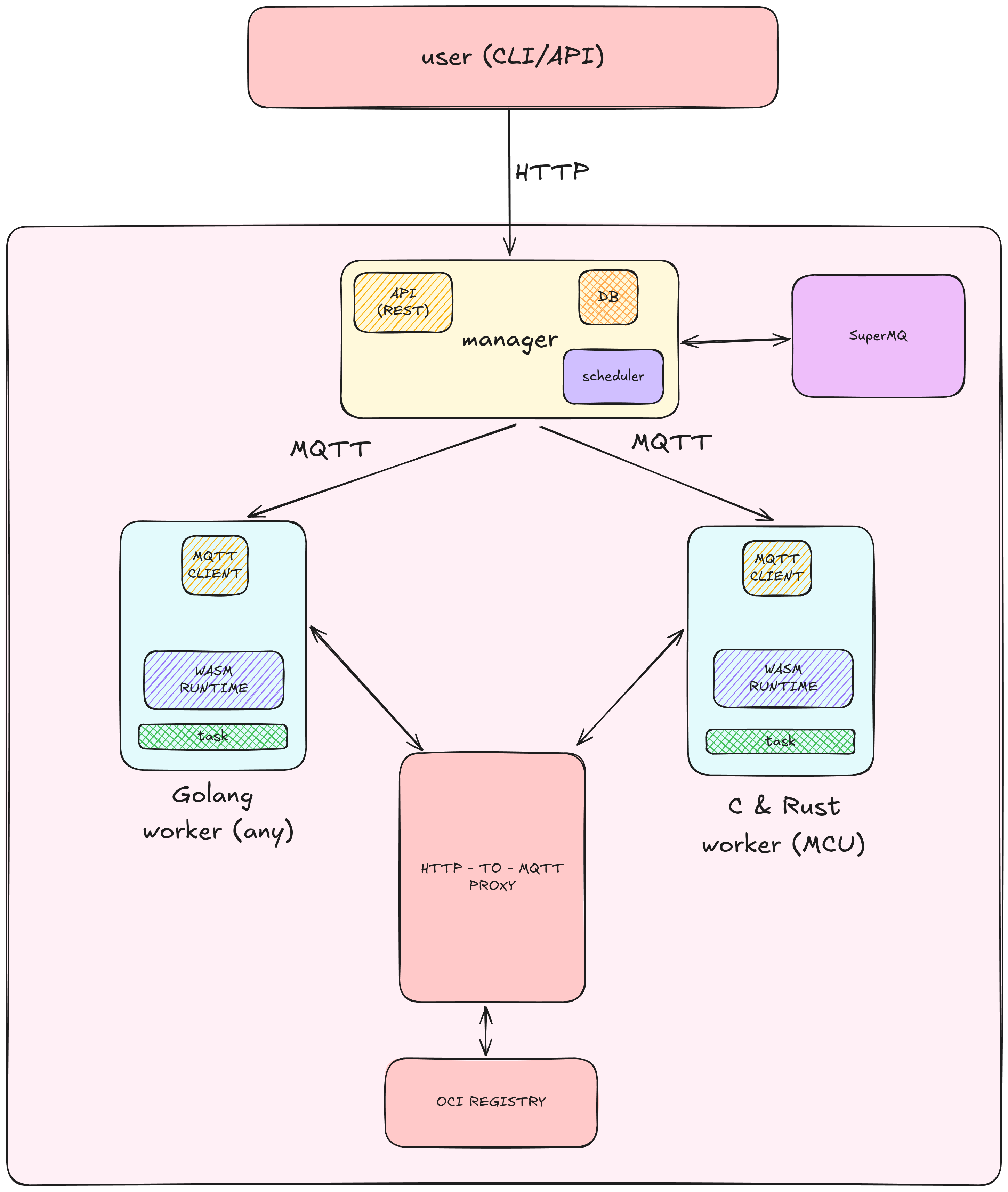

The Propeller system is a WebAssembly (Wasm) workload orchestrator for the Cloud-Edge continuum. It enables seamless deployment of Wasm applications from powerful cloud servers to constrained microcontrollers, combining flexibility, security, and performance. The system leverages MQTT for communication, a manager service for task orchestration, and supports multiple storage backends for different deployment scenarios.

The system is composed of several key components:

1. CLI: Command Line Interface for interacting with the Propeller system.
2. Manager: Central service responsible for task management, workflow orchestration, and proplet coordination.
3. Proplet: Worker nodes that execute WebAssembly workloads. The proplet is implemented in Rust for performance and memory safety.
4. Proxy: Service downloading wasm modules from OCI registries and distributing them to proplets using MQTT.
5. SuperMQ: Internal Event Driven Infrastructure for creation and communication between services.

Components

CLI

The CLI provides a command-line interface for users to interact with the Propeller system. It allows users to:

• Create, list, update, and delete tasks
• Start and stop tasks
• Manage jobs and workflows
• Configure federated learning experiments
• Provision manager and proplets

Manager

The Manager is the central orchestrator written in Go, responsible for managing the entire lifecycle of workloads and coordinating proplets. It handles:

Core Responsibilities:

• Task lifecycle management (creation, scheduling, execution, monitoring)
• Workflow orchestration with DAG-based dependencies
• Job management with configurable execution modes
• Federated learning experiment coordination
• Proplet health monitoring and liveliness tracking
• Cron-based scheduled task execution

Key Features:

• REST API for external integration
• MQTT-based communication with proplets
• Pluggable scheduler implementations (Round Robin, Priority-based)
• Support for multiple storage backends
• Middleware for logging, metrics, and tracing

Architecture Pattern:

Currently, the system supports 1 manager : multiple proplets. In the future, the system will be expanded to support multiple managers : multiple proplets for high availability.

Kubernets Operator

The Propeller Kubernetes Operator provides a way to deploy and manage Propeller on Kubernetes clusters. It handles the orchestration of tasks across proplets, scheduling, and resource management. The Operator is responsible for:

Deployment and Management:

• Deploying Propeller components (Manager, Proplet, Proxy)
• Managing Propeller components (scaling, restarting, monitoring)

Resource Management:

• Monitoring and scaling proplets based on resource utilization
• Dynamically adjusting proplet count based on workload demand

Security and Compliance:

• Ensuring secure communication and deployment of Propeller components
• Compliance with privacy regulations and best practices

Proplet

Proplets are worker nodes that execute WebAssembly workloads. The Rust implementation provides high-performance async I/O via Tokio, memory safety without garbage collection, and strong typing with comprehensive error handling. Proplets are responsible for:

Execution:

• Receiving tasks from the Manager via MQTT
• Executing WebAssembly modules using various runtimes (Wasmtime, Host, TEE)
• Reporting task results and status back to the Manager
• Supporting chunked binary downloads for large Wasm modules, with a 5-minute TTL for incomplete chunk assemblies

Health Monitoring:

• Sending periodic liveliness heartbeats (default: every 10 seconds, configurable via PROPLET_LIVELINESS_INTERVAL)
• Publishing proplet-level resource metrics (CPU, memory, cgroup stats) on a configurable interval
• Publishing per-task process metrics (CPU, memory, disk I/O, threads, file descriptors) while tasks are running
• Indicating availability for task scheduling

Runtime Support:

• Wasmtime: In-process WebAssembly execution using Wasmtime
• Host: External WebAssembly runtime integration via subprocess execution
• TeeWasmRuntime: Trusted Execution Environment with automatic TEE detection and attestation support

Process Monitoring

Proplet includes a built-in process monitoring subsystem for observing task and system resource usage:

• Monitoring Profiles: Each task can have a custom MonitoringProfile or use a pre-defined profile:
  • Standard: 10-second interval, collects CPU/memory/disk I/O/threads/file descriptors, retains 100 history entries
  • Long-Running Daemon: 120-second interval, retains 500 history entries
• PID Attachment: For runtimes that spawn separate OS processes (Host runtime), the monitor attaches to the task's PID to collect process-level metrics
• Metrics Export: Task metrics are published to control/proplet/task_metrics via MQTT during task execution
• Proplet Metrics: Separate from task metrics, proplet-level CPU and memory (including Linux cgroup v1/v2 stats) are published to control/proplet/metrics on a configurable interval

Proxy

The Proxy service handles downloading and distributing WebAssembly modules from OCI registries and distributes them to proplets.

SuperMQ

SuperMQ is an Event Driven Infrastructure (EDI) that provides:

• Entity creation and management
• MQTT-based messaging between services
• Secure IoT device communication
• APIs for service coordination

Communication

MQTT

MQTT is the primary communication protocol between the Manager and Proplets:

Manager to Proplet:

• Task assignments and configuration
• Start/stop commands
• Binary chunk distribution

Proplet to Manager:

• Liveliness heartbeats (configurable interval, default 10 seconds)
• Task execution results
• Proplet-level resource metrics (CPU, memory, cgroup usage)
• Per-task process metrics (CPU, memory, disk I/O, threads, file descriptors)

HTTP

HTTP is used for:

• CLI interactions with the Manager REST API
• External system integrations
• Proxy routing
• Federated learning coordinator communication (primary channel, with MQTT fallback)
• Model registry and local data store access during federated learning tasks

MQTT Topic Structure

Proplet uses the following MQTT topic structure:

m/{domainID}/c/{channelID}/control/proplet/alive
    └─ Liveliness heartbeat (configurable interval, default 10 seconds)

m/{domainID}/c/{channelID}/control/proplet/create
    └─ Discovery announcement on startup

m/{domainID}/c/{channelID}/control/manager/start
    └─ Task start commands from Manager

m/{domainID}/c/{channelID}/control/manager/stop
    └─ Task stop commands from Manager

m/{domainID}/c/{channelID}/registry/server
    └─ Incoming Wasm binary chunks from Registry

m/{domainID}/c/{channelID}/registry/proplet
    └─ Requests for Wasm binary chunks to Registry

m/{domainID}/c/{channelID}/control/proplet/results
    └─ Task execution results back to Manager

m/{domainID}/c/{channelID}/control/proplet/metrics
    └─ Proplet-level resource metrics (CPU, memory, cgroup stats)

m/{domainID}/c/{channelID}/control/proplet/task_metrics
    └─ Per-task process metrics (CPU, memory, disk I/O, threads, file descriptors)

Task System

Task Structure

Tasks are the fundamental unit of work in Propeller:

Task States

Tasks progress through the following states:

1. Pending: Task created but not yet scheduled
2. Scheduled: Task assigned to a proplet, awaiting execution
3. Running: Task currently executing on a proplet
4. Completed: Task finished successfully
5. Failed: Task execution failed
6. Skipped: Task skipped due to conditional workflow logic

Task Types

By Kind:

• Standard: Regular WebAssembly workload execution
• Federated: Federated learning training task

By Mode:

• Infer: Inference/prediction mode for ML models
• Train: Training mode for ML models

By Execution Pattern:

• One-shot: Single execution task
• Daemon: Long-running continuous task
• Scheduled: Recurring task with cron expression

Task Lifecycle

1. Task Creation: A user creates a task using the CLI or HTTP API, which sends a request to the Manager.
2. Task Scheduling: The Manager selects a proplet based on the configured scheduler (Round Robin or Priority-based) and task requirements.
3. Task Assignment: The Manager sends the task to the selected proplet via MQTT.
4. Task Execution: The proplet receives the task, fetches the WebAssembly module (from OCI registry or embedded binary), and executes it.
5. Status Reporting: The proplet sends periodic status updates and final results back to the Manager.
6. Task Completion: The Manager updates the task status, stores the results, and triggers any dependent workflow tasks.

Jobs

Jobs provide a way to group multiple related tasks together with a common JobID:

Job Execution Modes

• Parallel: All tasks in the job run concurrently
• Sequential: Tasks execute in order, one after another
• Configurable: Custom dependency-based execution using DAG

Job Lifecycle

1. CreateJob: Create a job with a name, list of tasks, and execution mode
2. StartJob: Initiate job execution based on the configured mode
3. Monitor: Track job progress through aggregated task states
4. Complete: Job reaches terminal state (Completed or Failed) based on constituent tasks

Workflows

Workflows provide DAG-based task orchestration with dependencies:

Dependency Management

• DependsOn: List of task IDs that must complete before this task can start
• RunIf: Conditional execution based on parent task outcome:
  • success (default): Task runs only if all dependencies succeeded
  • failure: Task runs only if any dependency failed

Workflow Coordinator

The workflow coordinator:

• Validates DAG structure (detects circular dependencies)
• Performs topological sorting for execution ordering
• Evaluates conditional execution (RunIf) based on parent states
• Automatically starts ready tasks when dependencies are satisfied
• Supports fail-fast semantics (stops on first failure)

DAG Validation

• Circular Dependency Detection: Prevents invalid workflow configurations
• Dependency Existence Validation: Ensures all referenced tasks exist
• Topological Sorting: Determines valid execution order for sequential mode

Federated Learning

Propeller includes built-in support for federated machine learning:

Core Components

Experiment Configuration:

• Define participants (proplets)
• Configure aggregation strategy
• Set round parameters (K-of-N, timeout)

Round Management:

• RoundState: Tracks round progress, updates, and completion
• K-of-N: Minimum number of updates required to complete a round
• Timeout: Maximum time to wait for participant updates

Aggregation:

• FedAvg: Federated Averaging algorithm
• Weighted aggregation by number of training samples
• Support for model weights (w) and bias (b) aggregation

FL Lifecycle

1. ConfigureExperiment: Setup FL experiment with participants and parameters
2. GetFLTask: Proplets retrieve training tasks for the current round. The task includes a round_id, model_ref, optional hyperparams, and an ml_backend hint (standard, tinyml, or auto)
3. ML Backend Selection: Proplet selects the ML backend automatically based on hyperparameters (e.g., small batch sizes trigger TinyML) or an explicit ML_BACKEND environment variable
4. Model Fetching: Proplet fetches the current global model from the model registry (MODEL_REGISTRY_URL) before training
5. Dataset Fetching: Proplet fetches local training data from the data store (DATA_STORE_URL) using its proplet ID
6. Local Training: Proplet trains the model on local data and produces a model update
7. PostFLUpdate: Proplet posts the model update directly to the coordinator via HTTP (COORDINATOR_URL/update). If HTTP fails, falls back to MQTT (fl/rounds/{roundID}/updates/{propletID})
8. Aggregation: Manager aggregates updates using FedAvg when K-of-N reached or timeout occurs
9. Model Distribution: Updated global model distributed to participants

FL Task Environment Variables

Federated learning tasks are driven by environment variables passed with the task:

Scheduling

The Manager supports pluggable scheduling algorithms:

Round Robin Scheduler

• Distributes tasks evenly across available proplets
• Maintains circular queue of proplets
• Simple and fair distribution

Priority Scheduler

• Sorts tasks by priority (higher values first)
• Falls back to creation time for equal priorities
• Supports priority range 0-100 (default: 50)

Scheduling Constraints

• Only schedules to "alive" proplets (heartbeat received within liveliness threshold window)
• Tracks task count per proplet for load balancing
• Considers proplet capabilities and task requirements

Storage Backends

Propeller supports multiple storage backends for different deployment scenarios:

Proplet Liveliness

Proplets maintain their availability status through a heartbeat mechanism:

• Heartbeat Interval: Configurable via PROPLET_LIVELINESS_INTERVAL (default: 10 seconds)
• Liveliness Threshold: Proplets are considered "alive" if heartbeat received within threshold window
• Scheduling Eligibility: Only alive proplets are eligible for task scheduling
• Health Monitoring: Manager tracks proplet health and removes stale entries
• Proplet Metrics: Proplets publish resource metrics (CPU, memory, cgroup stats) on a separate configurable interval (PROPLET_METRICS_INTERVAL, default: 10 seconds)
• Task Metrics: When monitoring is enabled, proplets publish per-task process metrics while tasks are running

Cron Scheduling

Propeller supports scheduled and recurring tasks:

• Cron Expressions: Standard cron syntax for scheduling
• Timezone Support: Configurable timezone for cron execution
• Persistent Scheduling: Schedules survive manager restarts
• Next Run Tracking: Automatic calculation of next execution time
• Recurring Tasks: Support for tasks that run on a schedule indefinitely

Container Image Distribution

Proplet supports WebAssembly module distribution through:

• OCI Registry: Fetch Wasm modules from OCI-compliant registries
• Embedded Binaries: Direct binary embedding in task definitions (base64-encoded)
• Chunked Downloads: Large modules split into chunks for efficient MQTT distribution. Incomplete chunk assemblies expire after a 5-minute TTL

Security Features

• TEE Auto-Detection: Proplet automatically detects the Trusted Execution Environment type at startup by inspecting device files, sysfs, /proc/cpuinfo, and kernel messages. Supported TEE types:
  • Intel TDX: detected via /dev/tdx_guest, /sys/firmware/tdx_guest, or cpuinfo/dmesg flags
  • AMD SEV/SNP: detected via /dev/sev, EFI variables, or cpuinfo/dmesg flags
  • Intel SGX: detected via /dev/sgx_enclave, /dev/sgx/enclave, or cpuinfo/dmesg flags
• Encrypted Workloads: When a TEE is detected, encrypted Wasm workloads are fetched from OCI registries and decrypted using the attestation agent and KBS
• Attestation: The attestation agent (attestation-agent) runs as a gRPC keyprovider service on port 50010 (formerly 50002); coco_keyprovider uses port 50011
• KBS Integration: Key Broker Service (KBS) integration for secure encryption key management. PROPLET_KBS_URI must be set when a TEE is detected
• SuperMQ: Secure MQTT communication for IoT deployments
